Halo Mini 3.2 – 6.4kW Infrared Heater
Price on Application
Halo Mini

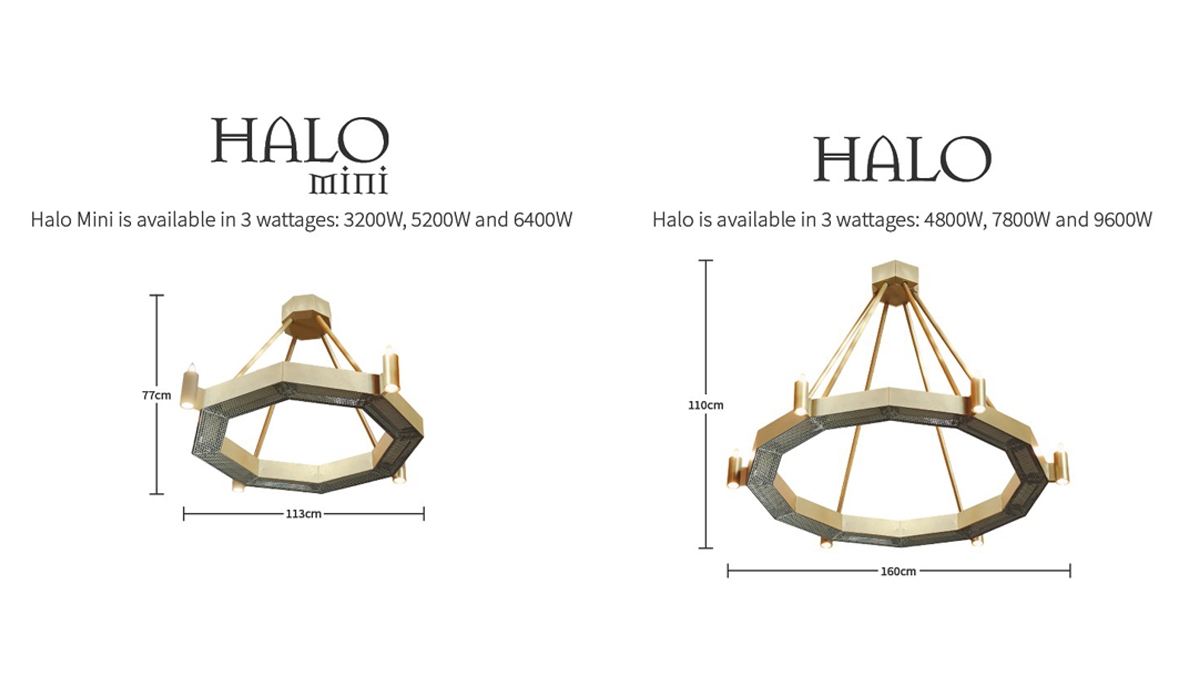

Halo Mini Herschel Halo Mini Halo Mini Size Comparison

Halo Mini 3.2 – 6.4kW Infrared Heater

Price
on
Application

Key Features:

  • Zero light heater with optional LED lighting
  • UK manufacture with British made steel
  • Optional bespoke decorative designs
  • Fast warm up times
  • Far infrared preserves historic interiors
  • Compact design
  • Suitable for homes with high ceilings

Please note this is a Special Order item that is made to order. Delivery charges will apply, subject to quote. Please contact Herschel to discuss your Halo specification, and APX controls, prior to ordering.

MODEL / WATTAGE DIMENSIONS HEATS M²

IR-HALO-M-3200

3200W standard

96 x 77 x 10cm

Contact Herschel

IR-HALO-M-3200-L

3200W with lights

113 x 77 x 15cm

Contact Herschel

IR-HALO-M-3200-D

3200W with decor

96 x 77 x 10cm

Contact Herschel

IR-HALO-M-3200-D-L

3200W with lights & decor

113 x 77 x 15cm

Contact Herschel

IR-HALO-M-5200

5200W standard

96 x 77 x 10cm

Contact Herschel

IR-HALO-M-5200-L

5200W with lights

113 x 77 x 15cm

Contact Herschel

IR-HALO-M-5200-D

5200W with decor

96 x 77 x 10cm

Contact Herschel

IR-HALO-M-5200-D-L

5200W with lights & decor

113 x 77 x 15cm

Contact Herschel

IR-HALO-M-6400

6400W standard

96 x 77 x 10cm

Contact Herschel

IR-HALO-M-6400-L

6400W with lights

113 x 77 x 15cm

Contact Herschel

IR-HALO-M-6400-D

6400W with decor

96 x 77 x 10cm

Contact Herschel

IR-HALO-M-6400-D-L

6400W with lights & decor

113 x 77 x 15cm

Contact Herschel

Special Order

5 year warranty

Reduce heating Cost

Energy efficient

Professional Install

Zero Maintenance

Find Out More

  • Description

    Description

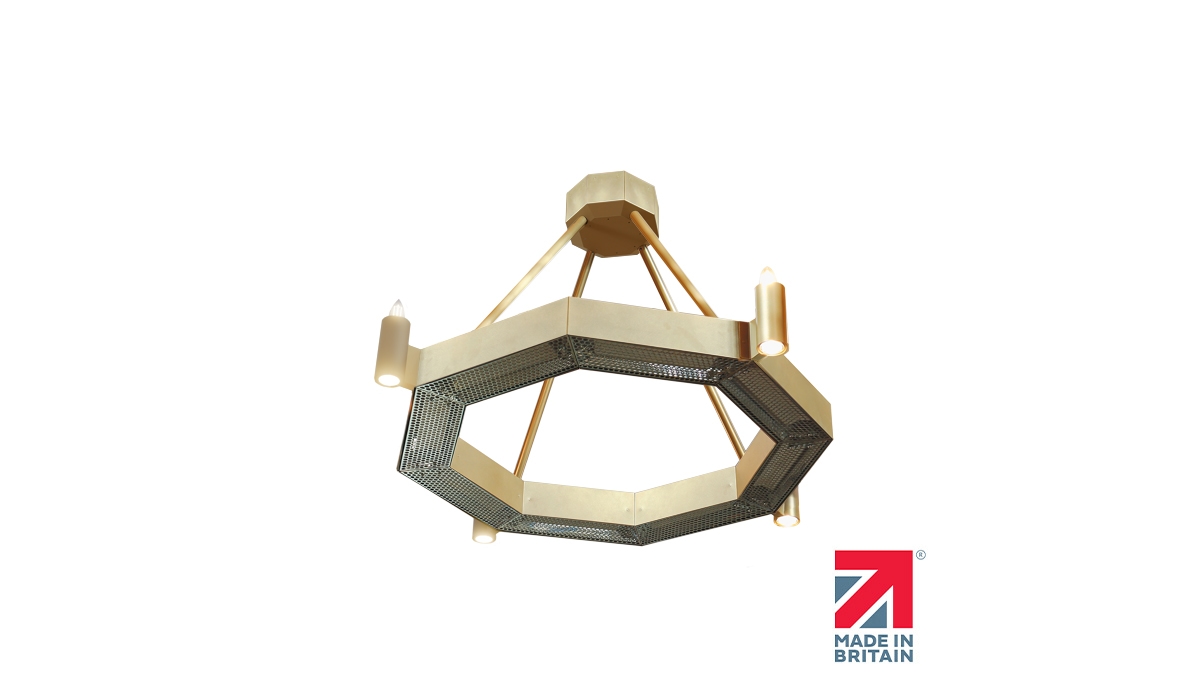

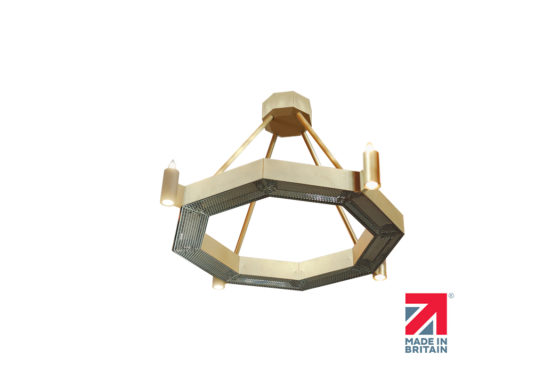

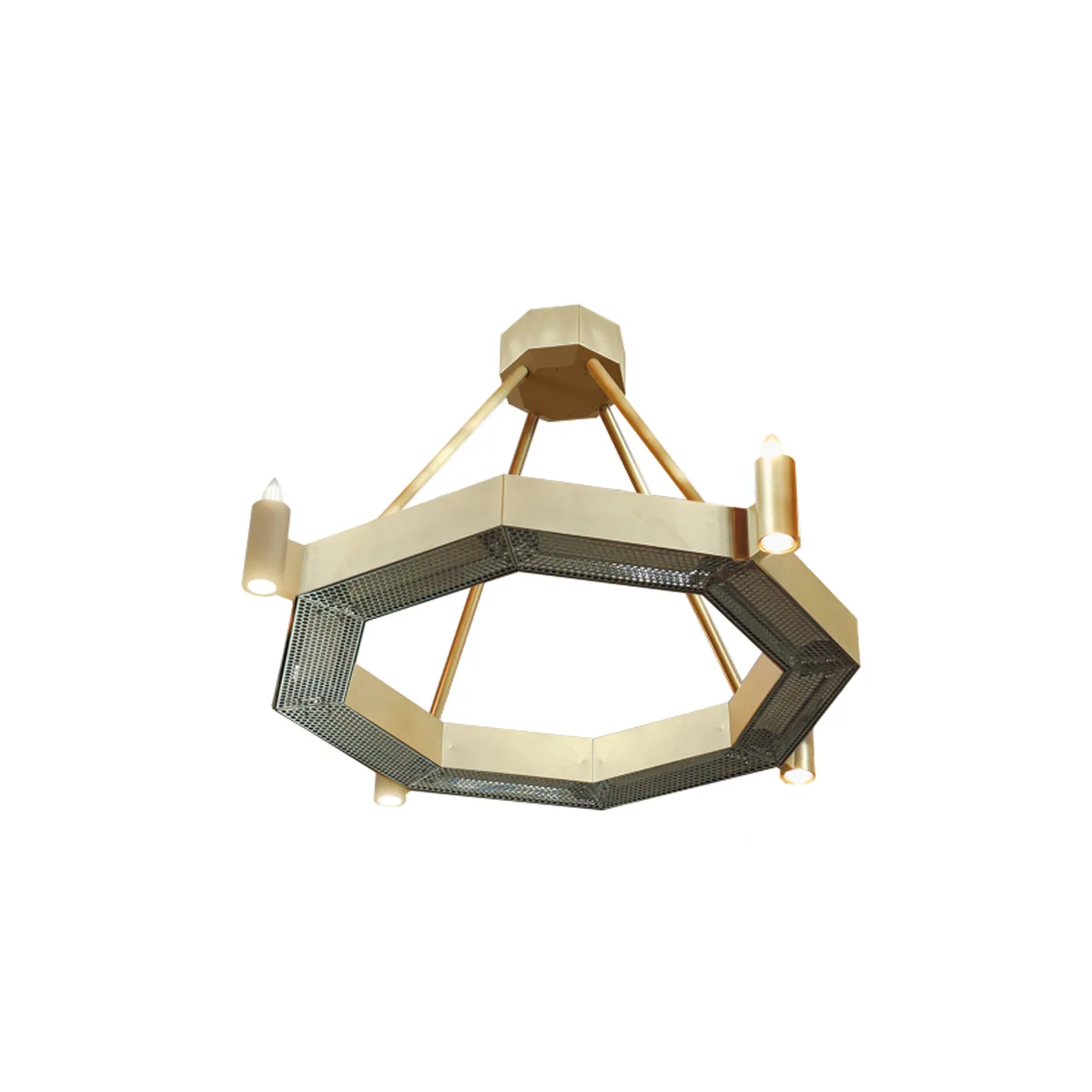

    The Herschel Halo Mini delivers the distinctive elegance and reliable warmth of the Herschel Halo in a compact form, perfect for smaller spaces in heritage buildings. Halo Mini has been developed in response to increasing demand for a smaller sized model of our stunning chandelier-style heater, to complement Halo. With the option to add dimmable LED lights and stunning decorative finishes, the Halo Mini provides the ideal heating solution for places of worship, listed properties, theatres, hotel lobbies and receptions as well as domestic properties.

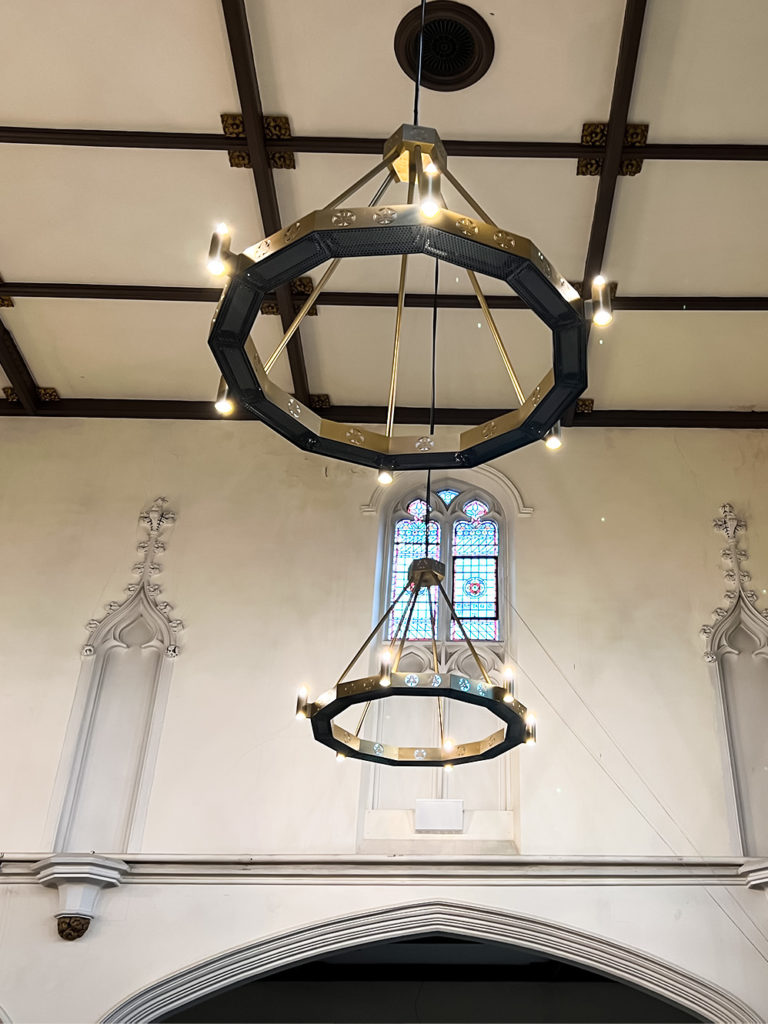

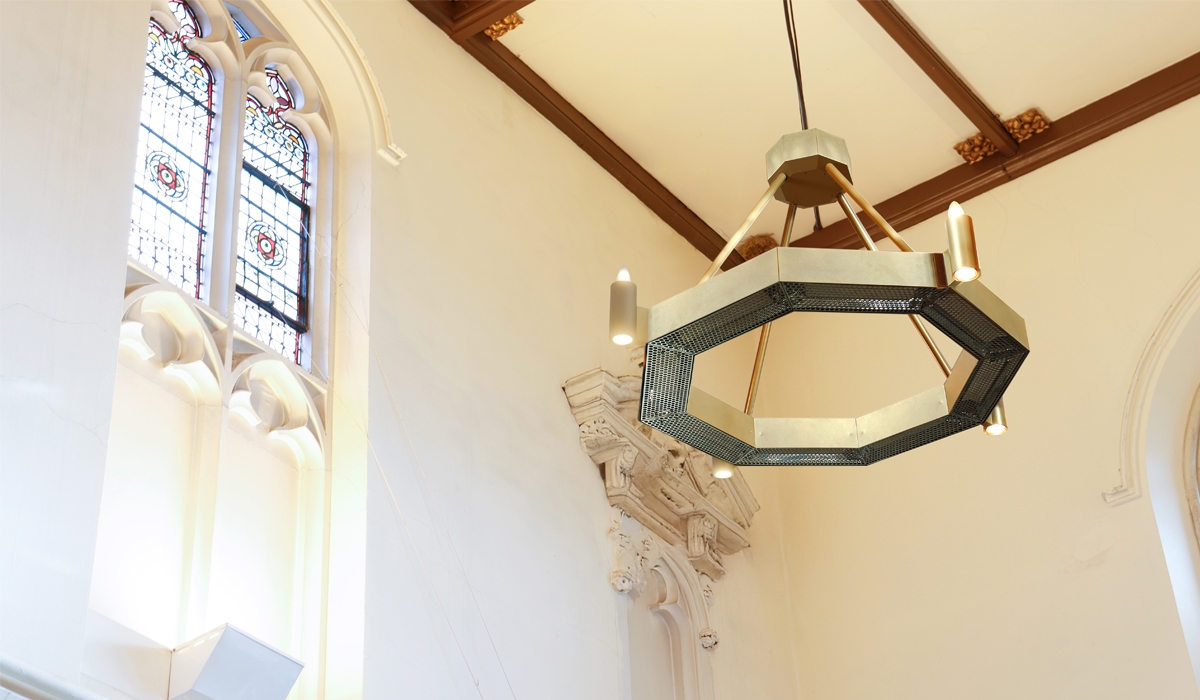

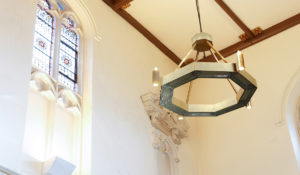

    In churches, Halo Mini will be suitable for smaller spaces such as side aisles and chancels as well as lower-ceilinged spaces such as choir pews. Halo Mini presents an additional solution where there is a challenge to protect views of stained-glass windows. In other larger commercial environments, Halo Mini will deliver an eye-catching heat (and lighting) solution that ensures people are warmed comfortably, affordably and sustainably with the enjoyable warmth from far infrared.

    The Halo Mini is available in three sizes, 3.2kW, 5.2kW, and 6.4kW and should be used in conjunction with the Herschel APX Controller. With Herschel’s long life Kanthal ceramic elements and no moving parts, Halo Mini is maintenance free, has no hazardous components and is 98% recyclable.

    To ensure the Herschel Heritage range incorporates the very best components and finishings, the grill has been nickel-plated to deliver longevity and protection against corrosion. Delivering fast warm up times and the ultimate flexibility in control, Halo Mini can be used to either gently heat occupants in defined bubbles, within large spaces, or alternatively heat the entire building. Compared to heat pumps and convection based systems, savings of over 50% on consumption can be achieved, delivering reduced energy consumption via a 100% CO2 free sustainable solution, when combined with renewables.

    For more information on recommended installation heights and heated areas, please get in touch with our Heritage team.

    Our Heritage team offer a full specification service including 3D scans and visual representations, where appropriate, using the very latest technology. Take a look at this link to see a 3D scan of the Halo heaters installed at St Matthew’s Church in Bristol.

    Please note this is a Special Order item that is made to order. Delivery charges will apply, subject to quote. Please contact Herschel to discuss your Halo specification, and APX controls, prior to ordering.

    Registered UK Design No. 6321585.

    All Halo Mini heaters are single-phase.

    Running times will be impacted by airflow, ambient temperatures and how the areas are used. Dependent upon the property age/type and levels of airflow present, the number of heaters required and running times will vary.

    The Halo Mini is for Commercial Use Only.

  • Technical

    Technical Specifications

    Heater Type: Fixed electric high temperature infrared heater

    Surface: British steel with aerospace-grade aluminium & nickel-plated grill

    Cable Length: Not included. Terminal box in the top section for connection.

    Voltage: 220 - 240V 50/60Hz

    Protection Class: IP20

    Installation: Ceiling-mounted only

    Heating Element: Herschel Kanthal Ceramic Element

    Warm-up Time: <10 Minutes

    Useful Wavelength: 3 - 10µm

    3.2KW Halo:      Single Phase 220-240V – Wired as 2x 1.8KW circuits

    5.2KW Halo:      Single Phase 220-240V – Wired as 2x 2.6KW circuits

    6.4KW Halo:      Single Phase 220-240V – Wired as 2x 3.2KW circuits

    Please contact Herschel Infrared for more information and to discuss how the Halo heaters and lighting can be controlled by our own APX system offering different options of control.

    Electromagnetic tolerance: Low emission

    Models:

    Options available for with/without LED lights and with/without decorative finish. Bespoke decor/colour options also available.

    Installation:

    Hanging System: This unit is for ceiling mounting only and must be installed beyond the reach of people due to the high surface temperature. It can be hung using a number of different mechanisms from wires to chains (provided by others) which must be capable of handling 4 x the weight of the heater.

    Heated Zone: Contact your Herschel representative for heated zones depending on suspended heights

    The heater will directly warm people and objects within the Heated Zone (note: air movement may reduce area coverage). Within enclosed areas the thermal mass of the building will also be heated within the entire zone.  Dependent upon the property age/type, insulation levels, number of heaters used and running times this will increase the ambient temperatures. For larger commercial projects or where different mounting heights are required we would always recommend Herschel carry out a survey or detailed desktop assessment.

    The heaters are not suitable for household or similar use. Also, the heaters must not be used or installed in any commercial premises where they can be accidentally touched.

    Quality & Safety

    EU/ UK Electrical Safety: Complies with IEC60335-1; 60335-2-30; EN62233

    AUS/ NZ Electrical Safety: For Commercial Use Only

    Restriction of Hazardous Substances (RoHS): IEC62321

    Warranty: 5 Years

    Note: Warranty excluding Ceramic Elements 12 months plus any cost of installation or consequential losses.

  • Manuals and Guides
  • Reviews (0)

    Reviews

    There are no reviews yet.

Halo Infrared Heater for Churches and Heritage Buildings

Heritage Specification Service

Herschel has a dedicated team of in-house surveyors and specialists who perform on-site and desktop estimating services for commercial heating projects. The team will work with you to understand your requirements and tailor a bespoke solution for your needs.

Contact us with your project details
