Select – Infrared Ceiling Tile Heaters

FROM $699.00

Rated 5.00 out of 5 based on 1 customer rating

(2 reviews)

Key Features:

Slimline design, white frame
Fits 60 x 120 ceiling tiles
Great value infrared heater
Space-saving commercial heating
Gentle far infrared
Use with Herschel IQ controls

What Panel Size Do I Need?

SpreadsheetConverter

Walls

Windows & Glazing

Roof

Intermediate Roof & Ceiling

Ground Floor

Width (m)

Length (m)

Height (m)

External walls

Glazed Area (m2)

Floor Level

Please Fill Out All Fields Above

Choose a panel or a number of panels that at least cover your wattage requirement. For further assistance just contact one of our friendly team for advice.
Please read our Terms of Use before relying on the results of this wattage estimator.

MODEL / WATTAGE	DIMENSIONS	HEATS M²	PRICE

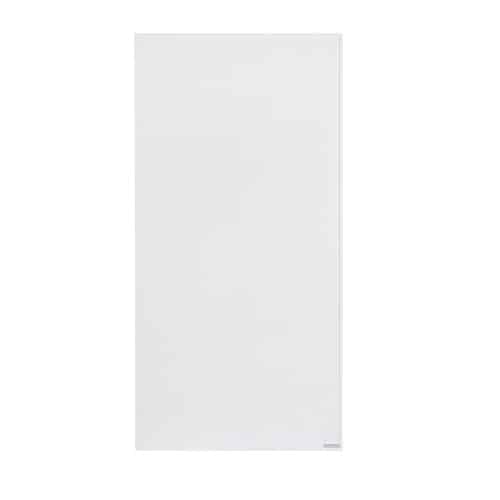

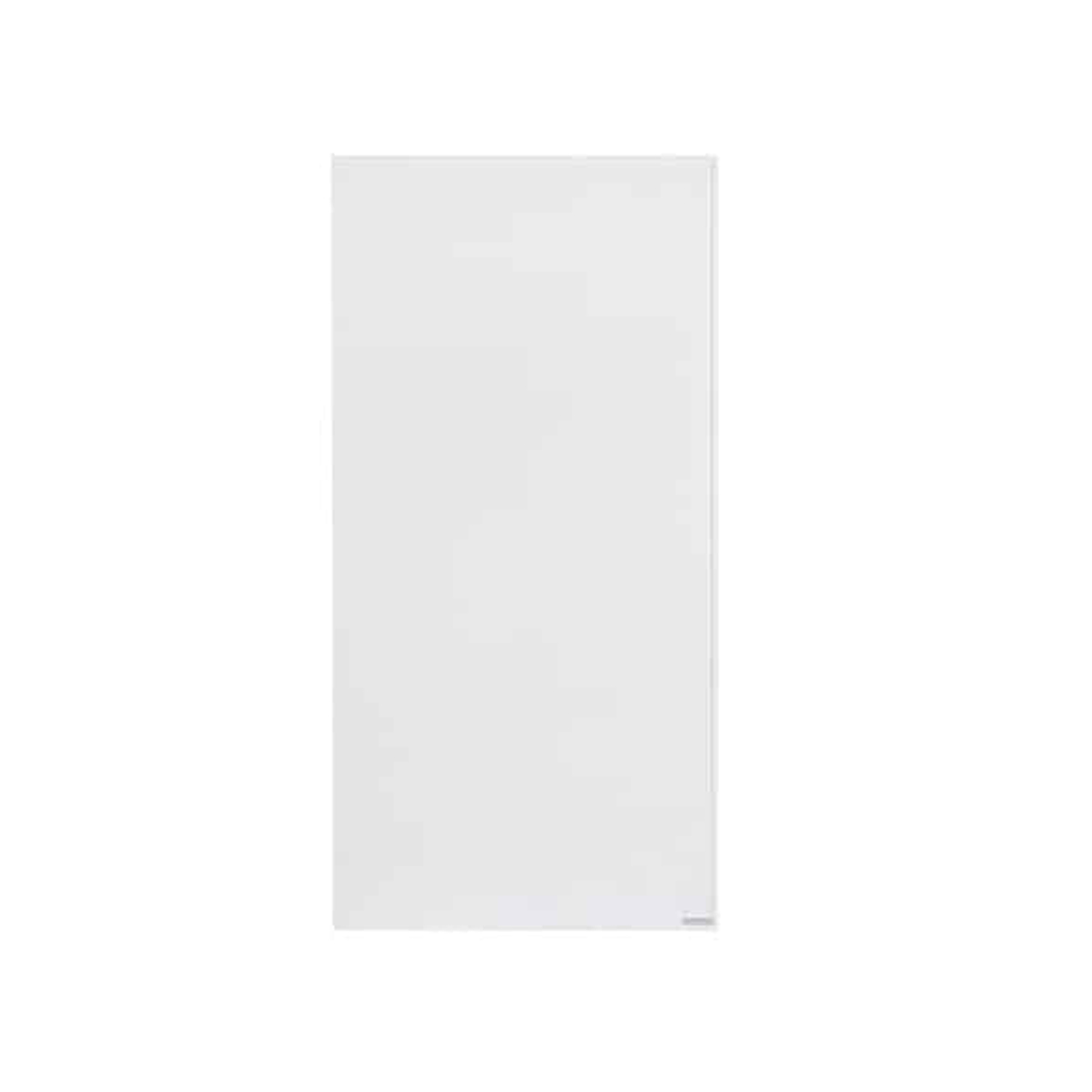

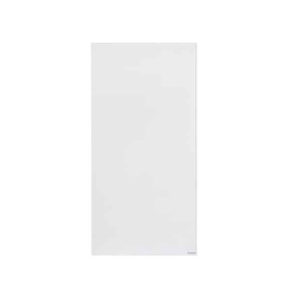

HS700-W-C 700W	60 x 120cm	13 - 15	$699.00	BUY

MODEL / WATTAGE

DIMENSIONS

HEATS M²

PRICE

HS700-W-C

700W

60 x 120cm

13 - 15

$699.00

BUY

Next Day Delivery

5 year warranty

Reduce heating Cost

Energy efficient

Easy Installation

Zero Maintenance

Find Out More

Description

Description

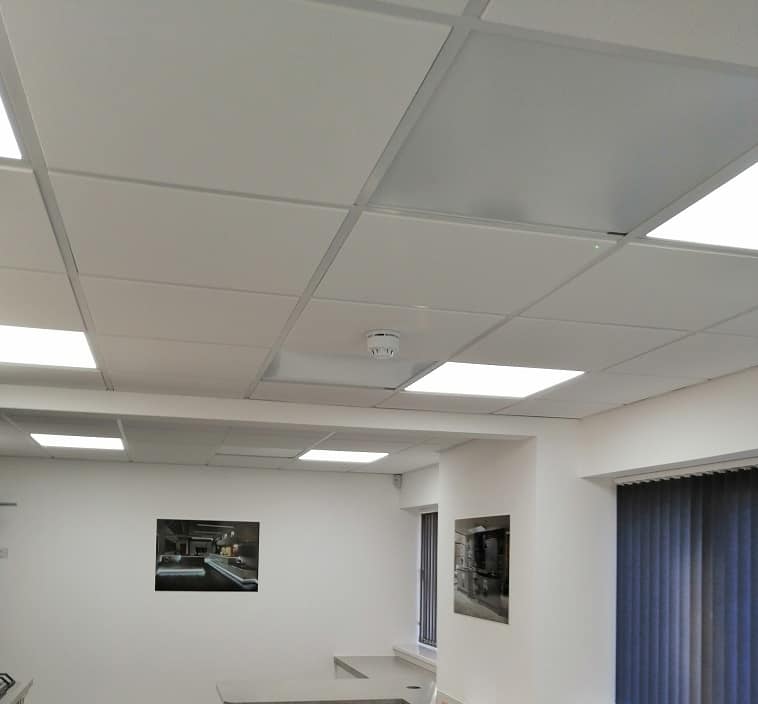

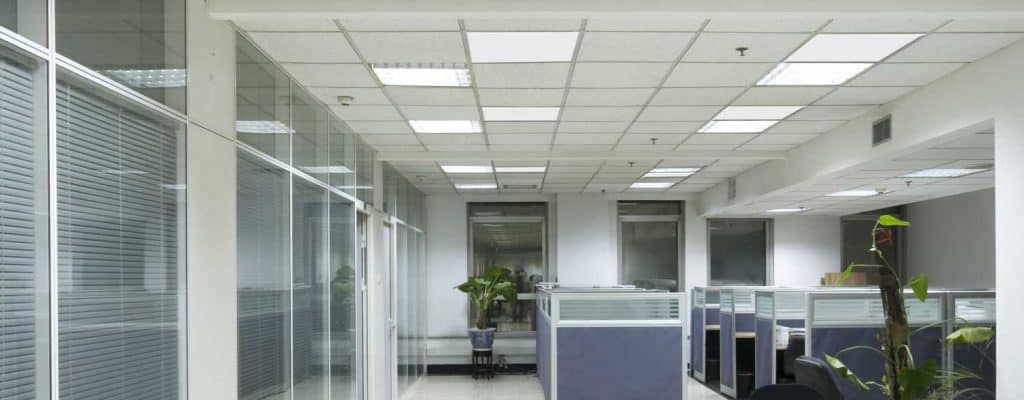

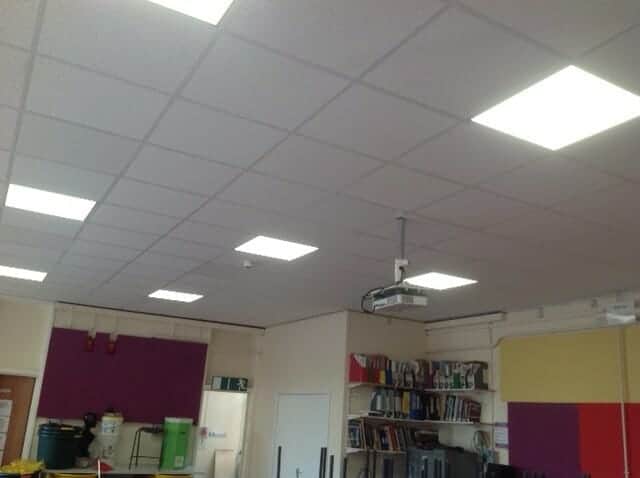

Herschel infrared ceiling tile heaters provide complete or supplemental heating in commercial, residential and public buildings. The infrared ceiling heaters provide clean, gentle, comfortable heat that is ideal for providing focused heat and not heating up unused areas. This saves substantial energy over other systems by heating people and objects rather than all the air in a room or building.

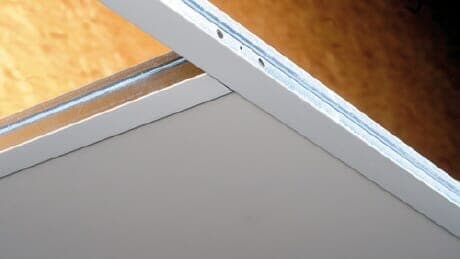

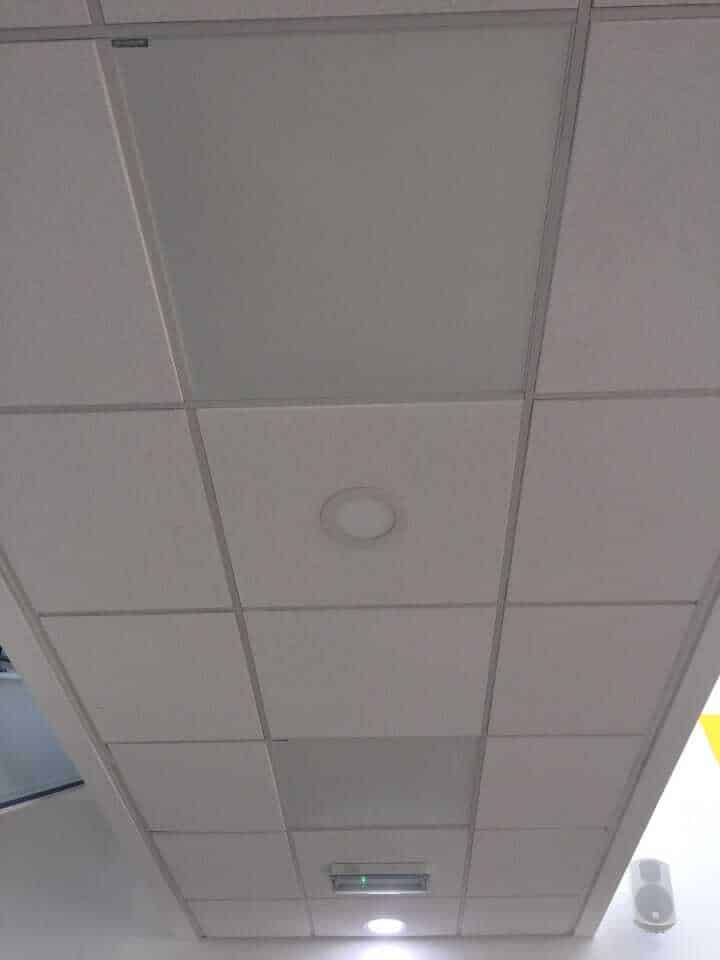

The 700 Watt heater fits 60 x 120 ceiling tiles. The Ceiling Tile heaters are intended for installation in a ceiling grid tile space only.

The panels are easy to install and control using Herschel’s own iQ system or existing building management controls.

The infrared ceiling heaters are available only in a white aluminium finish with a white aluminium frame.

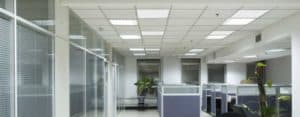

We offer a full service for office ceilings, including estimating your requirements via our survey service and our full product range is available through a wide distribution network.

The heated areas are a guide only and assume a medium to well insulated space with an average floor to ceiling height of 2.40M. Contact Herschel for a full quote and specification.
Technical

Technical Specifications
Heater Type: Fixed electric low temperature infrared heater
Surface: Aluminium powder-coated
Colour: White, RAL Code: 9003
Rear Case: Sheet Steel
Surface Temperature: 95 - 105°C

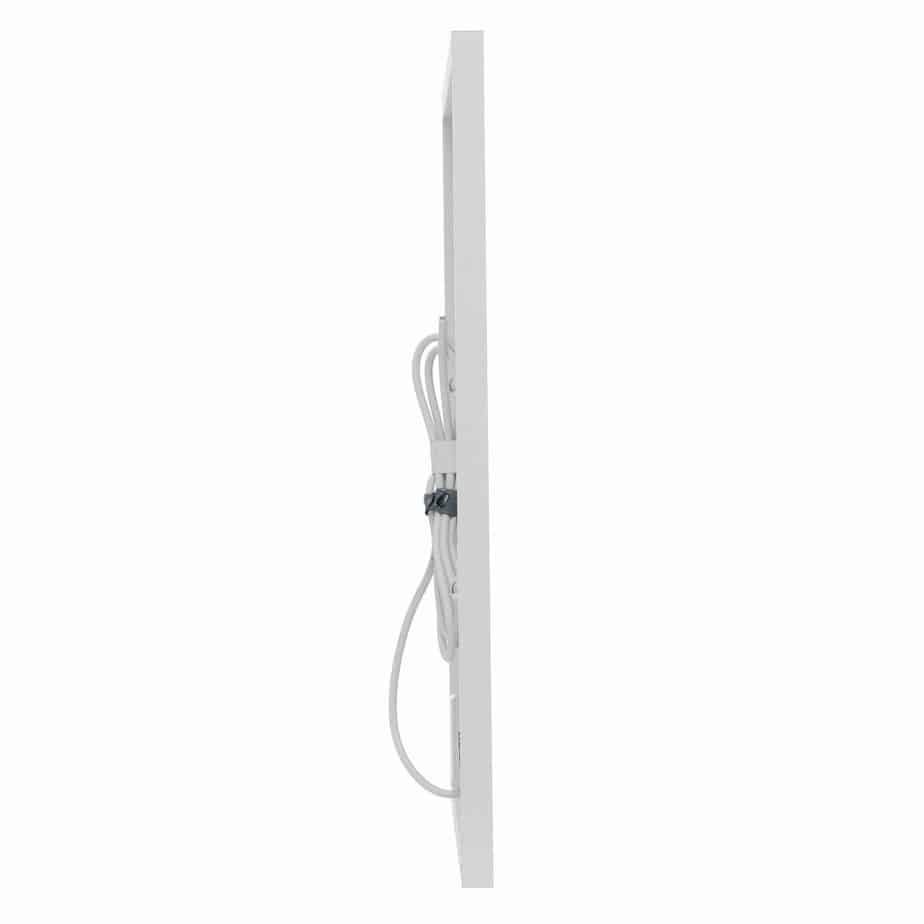

Cable Length: 2.5m
Plug: No Plug
Voltage: 220 - 240V 50 Hz
Protection Class: IPX4
Installation: Ceiling Grid installation
Heating Element: Herschel COSIX © Cell Technology
Warm-up Time: 7 Minutes
Useful Wavelength: 5 - 12µm
Quality & Safety
TÜV GS Certification (TÜV SÜD Certification & Testing Co. Ltd)
EU/ UK Electrical Safety: IEC 60335-1; 60335-2-30 Compliant
AUS/ NZ Electrical Safety: AS/NZS 60335-1; 60335-2-30 Compliant
Radiant Performance: IEC60675
Electromagnetic Certification: EN55014-1; EN61000-3-2&3 (TÜV Rheinland, Germany)
Restriction of Hazardous Substances (RoHS): IEC 62321 Compliant
Ecodesign Compliance: ErP Regulation (EU) 2015/1188 and Supplement (EU) 2016/2282 (Lot 20) when using Herschel XLS Controls
Warranty: 5 Years
Manuals and Guides

Ceiling Tile Data Sheet Click to download

Select Installation Guide Click to download
Controls / Accessories
Control Options (Required)
- Herschel iQ MD2 Wired Thermostat
  $199.00
  BUY

  Herschel iQ MD2 Wired Thermostat

  The Herschel iQ MD2 Wired Thermostat is ideal for new builds / renovations where cabling can be neatly hidden whether it be for domestic or commercial applications. When used in conjunction with your wifi network and the SmartLife app, MD2 can also be controlled remotely via the internet, enabling you to manage your heating when you are away from the building. The SmartLife App also enables control of your heating by voice using Alexa or Google Assistant.

  MD2 is wired directly to the mains circuit and to the heaters and requires recessing into the wall.

  The MD2 thermostat will operate your Herschel heater(s) by turning them on if the room temperature is lower than the desired temperature and turning them off once the desired temperature is reached. The MD2 is easy to operate, featuring a large digital touchscreen display and incorporates the latest EcoDesign energy-saving features including Herschel’s open window technology.

  MD2 has a keypad locking feature to prevent unauthorised tampering making it suitable for commercial applications such as hotels, care homes, student accommodation and let properties. The MD2 is a 16 amp thermostat enabling up to 3.6 kW of Herschel heaters to be connected.

  Note: Herschel iQ controls will only work with Herschel heaters. *Attempted use with any other heater brand will invalidate the warranty.

  BUY
- Herschel iQ T2 Wireless Thermostat Pack
  $199.00
  BUY

  Herschel iQ T2 Wireless Thermostat Pack

  The Herschel iQ T2 Thermostat pack (including one T2 thermostat plus R2 Receiver) incorporates the very latest energy-saving technology and is specifically designed to regulate Herschel Infrared heaters. When used with wifi you can also regulate your heating remotely using the SmartLife App.

  Easy to install it is perfect for installations where hard wiring to the MD2 Thermostat would be impractical (for example, if you wish to minimise chasing out walls/cable trunking).

  The T2 pack comprises a battery operated, wireless T2 Thermostat which can be wall mounted or free standing (and also includes one R2 Receiver).

  The R2 Receiver must be wired to the mains electricity supply and also to the Herschel heater(s). The T2 and R2 are paired wirelessly to each other and the R2 can also be paired to your wifi for SmartLife app control (if required).

  The T2 will then control all R2s which are paired to it. The T2 pack will control up to 2kW (at 230V supply) of Herschel Infrared heaters on one electrical circuit. To control more heaters in the same zone, or if you wish to use one R2 Receiver per heater, simply purchase additional R2 receivers and pair them to the T2.

  The T2 features 2 manual modes and 7 x 1 day programming and is an easy to operate thermostat. The T2 incorporates the latest EcoDesign energy-saving features including Herschel’s open window technology and an adaptive start function ensuring your room is always at the right temperature with the least energy use.

  Note:

  Herschel controls will only work with Herschel heaters. Attempted use with any other heater brand will invalidate the warranty.

  A T2 must be used even if SmartLife app control is to be the primary means of controlling your heating (i.e. you cannot use just the App and R2).

  The T-T2 pack incorporates one T2 thermostat and one R2 Receiver.

  BUY
Reviews (2)
2 reviews for Select – Infrared Ceiling Tile Heaters
1. Rated 5 out of 5

  Max McArthur – 27th August 2019

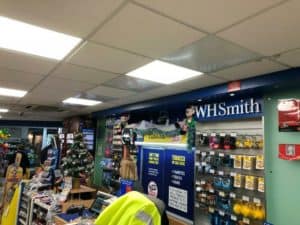

  Such a clever product. Perfect for our shop floor.
